Galvanized Wire Netting Machine 5.0mm PVC Wire 100x120mm Gabion Mesh for Construction

Product Details

Place of Origin: China

Brand Name: JINLIDA

Model Number: LNWL4

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Competitive price

Packaging Details: Nude packing

Delivery Time: 50 days

Payment Terms: L/C,T/T

Supply Ability: 200 sets/a year

Get Best Price
Highlight:

warping machine

,

large diameter hexagonal mesh machine

Name:
Wire Netting Machine
Mesh Size:
100x120mm
Mesh Width:
5000mm
Wire Diameter:
5.0mm Pvc Wire
Speed:
225m/h
Application:
Construction
Name:
Wire Netting Machine
Mesh Size:
100x120mm
Mesh Width:
5000mm
Wire Diameter:
5.0mm Pvc Wire
Speed:
225m/h
Application:
Construction

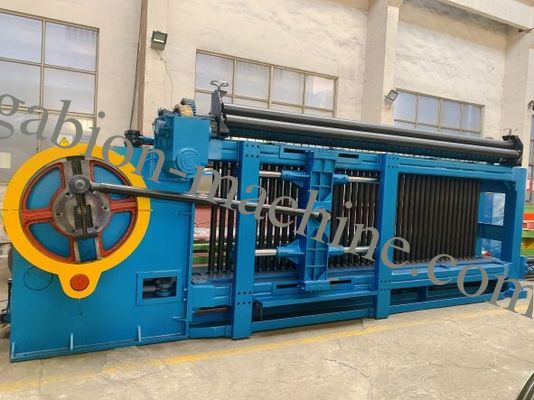

Galvanized Wire Netting Machine 5.0mm PVC Wire 100x120mm Gabion Mesh for Construction

Galvanized Wire Netting Machine 5.0mm PVC Wire 100x120mm Gabion Mesh for Construction





Quick Detail:

1. Mesh sizes: 100X120mm

2. twist: double twist & three twist

3. Max. netting width: 5000mm

4. Max. galvanized wire diameter: 4.0mm

5. Max PVC wire diameter: 5.0mm

6. Spindle Speed:25r/min

7. Power: 30Kw

8. Size: 7850 x 1600 x 2400mm

9. Weight: 15MT

10. Theoretic output: 225m/hr

11. Automatic stop system (option): when the coiling finished or wire broken, the machine will stop automatically

12. Infrared ray safety protection system (option)

13. Automatic oil system





Features for LNWL-4 gabion machine



1. The LNWL-4 series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes; we can produce the machne as your size.

2. This new 4 series gabion mesh machines structure is simpleness, it can make the machine weaving mesh more easier.

3. The capability is stable, parts are hard-wearing, can lengthen machine life.

4. The reed pipes adopt seemless iron tube to increase inside diameter,it can put more spring wire and also can reduce the weight of machine, making machine work faster.



Mesh Weaving Machine Working

Galvanized Wire Netting Machine 5.0mm PVC Wire 100x120mm Gabion Mesh for Construction 0




Applications:



Gabion making Machine is the professional machine to produce inerratic gabion mesh ,the mesh can be

used to produce coop, and is widely used as protect and  sustain bank, hillside, road and bridge, reservoir

and other construction project, and it is the good material to prevent or control flood.


Galvanized Wire Netting Machine 5.0mm PVC Wire 100x120mm Gabion Mesh for Construction 1





Competitive Advantage:



1. Jinlida insists on innovating,we have studied and produced automatic gabion production line,it can make gabion box automatic from mesh weaving to edge winding mesh sheet,this system will save labour force and improve output,it has high efficiency.



2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to

process, so the quality can be ensured.



3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
