High Speed Double Twist Wire Netting Making Machine For Chemical Industry

High Speed Double Twist Wire Netting Making Machine For Chemical Industry

  • High Light

    wire mesh making machine

    ,

    wire netting machine

  • Name
    Hexagonal Wire Netting Machine
  • Usage
    Chemical Industry
  • Voltage
    220V/380V
  • Machine Width
    3300mm
  • Mesh Size
    60*80mm
  • Wire Diameter
    3.0mm
  • Place of Origin
    China
  • Brand Name
    Jinlida
  • Model Number
    LNWL33-60-2
  • Minimum Order Quantity
    1
  • Price
    Competitive price
  • Packaging Details
    Nude packing
  • Delivery Time
    50 days
  • Payment Terms
    L/C,T/T
  • Supply Ability
    200 sets/year

High Speed Double Twist Wire Netting Making Machine For Chemical Industry

High Speed Double Twisted Wire Netting Making Machine For Chemical Industry




Quick Detail:



     The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh

sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC

coated wire is available



Description:



     1.It uses big worm gear case, it reduces oil temperature to avoid worm burning hot. And the force of pulling mesh is greater.



     2.The machine is supposed to be in continuous and smooth operation, saving much labour force.It has low noise and automatic stop system.If coiling wires are ran out,the machine will stop automatically.



     3.The LNWL2 series mesh weaving machines have been designed to make gabion mesh of various widths and mesh sizes.



Gabion Application



     Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also

used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside,

road, bridge and civil engineering. It is one of the best against flooding material.

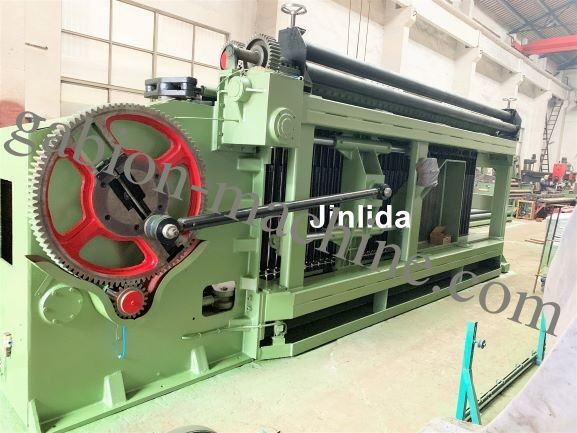

High Speed Double Twist Wire Netting Making Machine For Chemical Industry 0



Specifications:



1. Mesh sizes: 60x80mm

2. twist: double twist

3. Max. netting width: 3300mm

4. Max. galvanized wire diameter: 2.8mm

5. Max PVC wire diameter: 3.8mm

6. Spindle Speed:25r/min

7. Power: 15Kw

8. Size: 7200 x 1400 x 2400mm

9. Weight: 15MT

10. Theoretic output: 165m/hr

11. Automatic stop system (option): when the coiling finished or wire broken, the machine will stop

automatically

12. Infrared ray safety protection system (option)

13. Automatic oil system



Gabion Machine Working

High Speed Double Twist Wire Netting Making Machine For Chemical Industry 1High Speed Double Twist Wire Netting Making Machine For Chemical Industry 2



Gabion Machine Packing

A set of gabion machine will be loaded to one 40' container, it is nude packing and will use wire to fix the machines in the container, make sure it is safe on passage.

High Speed Double Twist Wire Netting Making Machine For Chemical Industry 3



Competitive Advantages:



1. Jinlida company invented the first special equipment of double twisted wire netting making machine in

China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in this area

of gabion machine making for 15 years.



2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to

process, so the quality can be ensured.



3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our

technician to help install the machines in your country, and also could supply all the spare parts with cost

price if customer need.
