Jiangyin Jinlida Light Industry Machinery Co.,Ltd 86-510-86385783 jessie@chinajinld.com

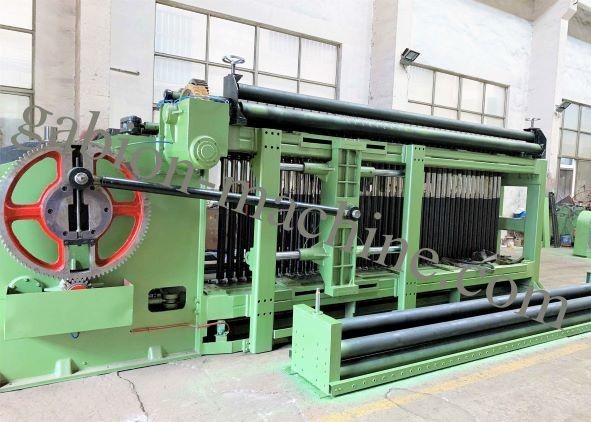

Professional Corrosion Resistance 2.6mm Gabion Box Wire Cage Machine

Professional Corrosion Resistance 2.6mm Gabion Box Wire Cage Machine

  • High Light

    2.6mm wire cage machine

    ,

    2.6mm gabion box machine

    ,

    corrosion resistance wire cage machine

  • Product Name
    Gabion Mesh Machine
  • Mesh Width
    4300mm
  • Mesh Size
    84*110mm
  • Twisting Number
    Double Twist
  • Usage
    Gabion Box Stone Cage
  • Voltage
    380v
  • Motor
    22kw
  • Speed
    195m/h
  • Wire Diameter
    2.6mm
  • Option
    PLC Control
  • Place of Origin
    China
  • Brand Name
    Jinlida
  • Certification
    CE, ISO
  • Model Number
    LNWL4
  • Minimum Order Quantity
    1 set
  • Packaging Details
    Nude packing and will be fixed in 40 OT.
  • Delivery Time
    45 days

Professional Corrosion Resistance 2.6mm Gabion Box Wire Cage Machine

84x110mm Gabion Machine PVC Coated 2*1*1m Gabion Box Stone Cage



Gabion machine is also known as gabion box making machine, which is the professional machine to produce hexagonal wire mesh.

We can manufacture gabion machine according to customer request.



Quick Details

1. The weaving mesh speed of LNWL4 adds to 60 moves per minute, in this way, efficiency improves one third of old machines.

2. For high corrosion resistance,zinc and PVC,Galfan coated is available



Specifications


Style Mesh Size Width Wire Diameter Spindle Speed Power of Motor Theoretic Output
(mm) (mm) (mm) (r/min) (kw) (m/h)
LNWL4-60 60×80 4300 1.6-3.2 25 22 165
LNWL4-80 80×100 1.6-4.0 195
LNWL4-100 100×120 1.6-4.0 225
LNWL4-120 120×150 1.6-4.2 20 255




Description

1. It uses big worm gear case, it reduces oil temperature to avoid worm burning hot. And the force of pulling mesh is greater.

2. It is the ideal machinery that weaves big signification,breadth portal arm,thick silk gabion mesh.

3. It can weave 3.2mm wire mesh easily like normal machine weave 2.4mm wire mesh, and speed is also quickly as normal style.



Application

The gabion box machine is the professional equipment that produces hexagonal mesh, its product is widely used in

petroleum, building, farming and chemical engineering industry, keep warm piping and other piping,

still be applicable to the river embankment protection, coast to manage,

and the assisting of tunnel engineering and breakwater establish the etc.



Advantages

1. Jinlida is the professional manufacturer of the hexagonal wire mesh machine, and our factory is initiative for gabion mesh machine in China.

2. Jinlida has rich experience and professional skills to meet your needs and satisfy your requirements.

3. Engineers available to service machinery overseas.
